What is Isometric Graph Paper?
Unlike standard square graph paper, isometric graph paper is made up of a grid of small equilateral triangles. The lines intersect at 60 and 120-degree angles, creating a framework where the "horizontal" lines are actually slanted at exactly 30 degrees from the horizontal baseline.
This unique geometric structure makes it incredibly easy to draw three-dimensional objects on a two-dimensional surface without needing to calculate complex perspective vanishing points.
The Industry Standard: 5mm Metric Grid
The 5mm isometric grid is the most widely used format internationally. It provides the perfect balance between granular detail and clear, uncluttered drawing space.
- Best for: General mechanical drafting, educational geometry, and 3D concept sketching.
- Scale: 5mm spacing translates easily to 1:10 or 1:100 metric architectural scales.

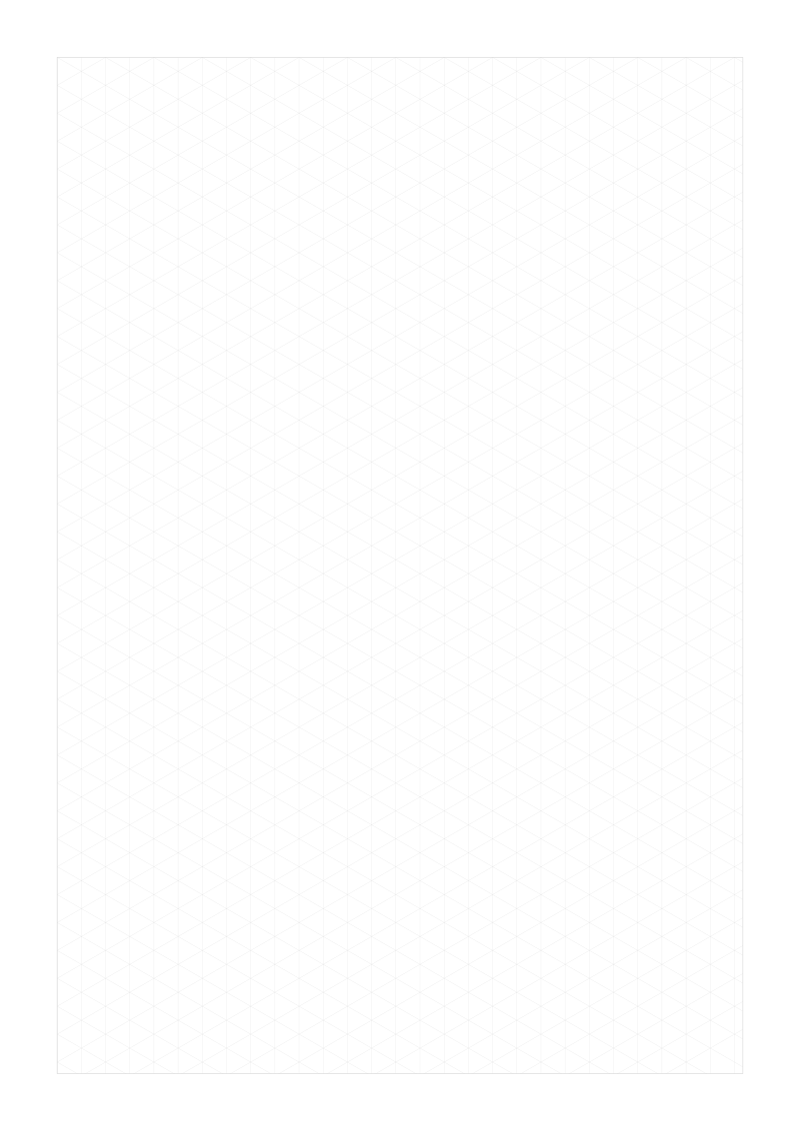

1/4 Inch Imperial Grid for US Standards
For architects and engineers working in the United States, the 1/4 inch grid (approximately 6.35mm) is the absolute standard. This grid perfectly matches imperial rulers and standard US building material dimensions.
When working on housing floor plans or HVAC diagrams in the US, the 1/4 inch grid allows you to easily map 1/4 inch to 1 foot (1:48 scale).

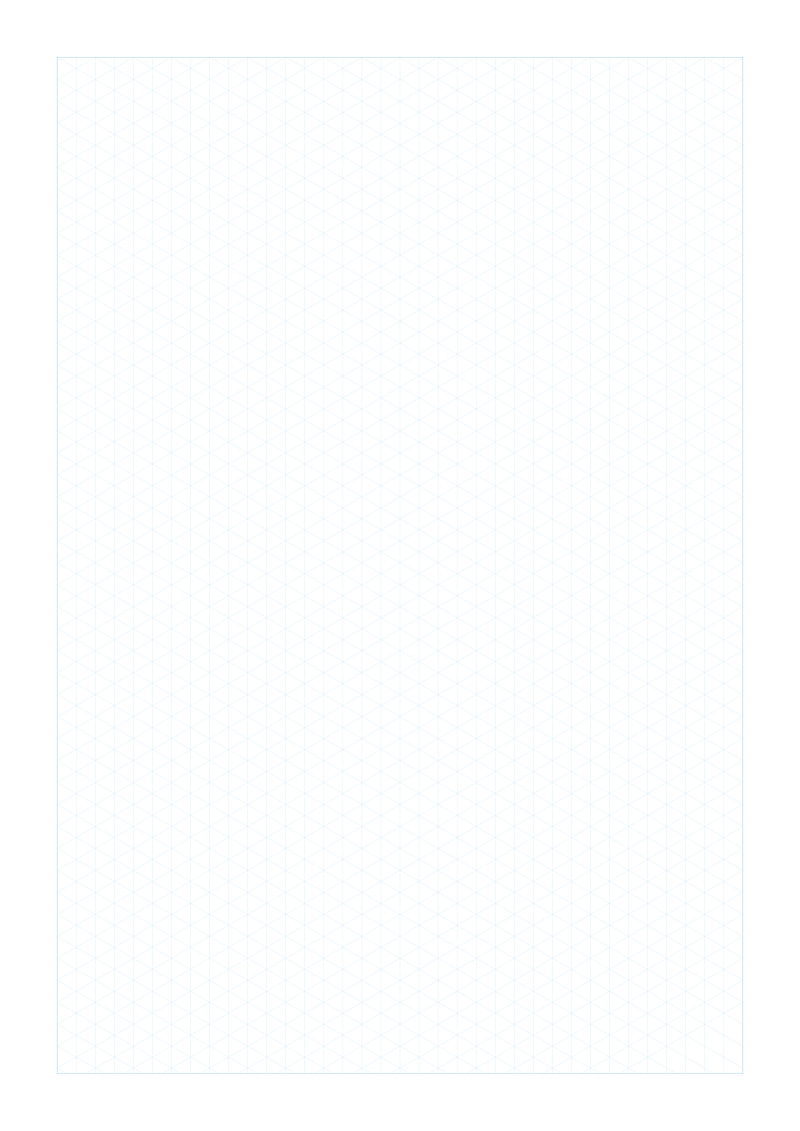

The Draftsman's Secret: Non-Reproducible Blue
Before digital CAD took over, draftsmen and comic book artists relied heavily on "non-reproducible blue" (also known as non-photo blue) ink.
This specific shade of light cyan is practically invisible to traditional black-and-white photocopiers and older scanners. By printing your isometric grid in this color, you can sketch your 3D design, ink the final outlines in black, and then photocopy the page. The blue grid will magically disappear, leaving only your clean, professional drawing.
Large Format: 11x17 Tabloid Size
Standard Letter or A4 paper is often too small for complex exploded assembly views or large architectural layouts. The 11x17 inch Tabloid size provides exactly double the workspace of a standard Letter page.
You can generate a Tabloid template in PaperMe Studio by changing the paper size setting. Ensure your printer supports 11x17 paper and bypasses the standard tray.
A3 Landscape for Professional Portfolios
Similar to Tabloid but for the metric system, A3 is the go-to large format for European and Asian professionals. Whether you are mapping out a Dungeons & Dragons tabletop campaign or presenting an engineering portfolio, A3 isometric paper offers the ultimate canvas.
